Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: YITAI
  • Model Number: YTB-C 8/45/102
  • Machine Type: jacquard loom
  • Product: underwear elastic tape
  • Material Capabilities: Yarn
  • Condition: New
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Elastic Tape Jacquard Machine
  • Application: Clothing
  • Model: YTB-C 8/45/192
  • Hook: 128,192,256,320,384 hooks
  • Reed width: 45mm
  • Running speed: 800~1000 RPM
  • Heald frame: 4~10
  • Chain link: 8~40
  • Weft density: 3.5~36.7 weft/cm
  • Standard attachment: yarn creel,software,rubber feeder

Packaging & Delivery

Packaging Details: standard export wooden box for jacquard machine
Delivery Detail: Shipped in 10 days after payment
Company Information



Welcome to YITAI Group!

20 years Manufacturer of Weaving Machines.



Agents in South America, India, Indonesia, Bangladesh now. 7 branches in different countries.

More agents in other countries wanted !!!

Join us, benefit both of us !



Product Description

 Jacquard machine, computerized jacquard machine, Elastic Tape Jacquard Machine



Computerized jacquard machine tap uses connecting rod drive structure, overcoming the defeat that the belt can be stretched during use. The tap adopts central upright column structure which is neat and easy for the yarn to entry. All core parts of the tap are machined by machining center to ensure the veracity; jacquard rope and silk are imported; body is from YTB series which last long and has low depreciation.



Characters

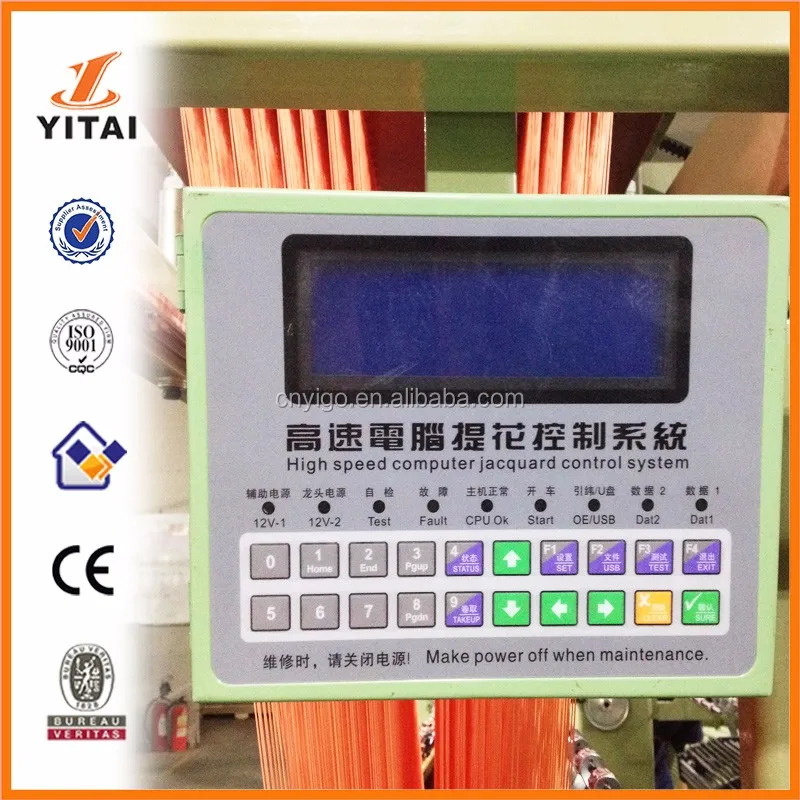

Machine uses computer design pattern system, separate operation on machine and computer, easy to control and adjust. Adopts USB disk input system, fully compatible to all jacquard data format, simple and fast operation. Double-motor to keep a stable operation when adjusting, even weft feeding speed to keep the fabric to the highest quality. Precise and accurate machine, solid and simple design, all series use high-precision machining special steel, high veracity, hard-wearing, low depreciation.



Specifications



Jacquard Needles128192256
Model6/556/458/3010/256/556/458/304/656/556/45
Tapes66810668466
Reed width(mm)55453025554530655545
Motor2HP: Double Rapid
Speed800-1000 RPM
Heald Frame8-10 PCS
Design chain circle8-40
Weft density3.5-36.7 WEFT/CM
Normal attachment14-30 yarn creel places, software ,jacquard normal attachment
Optional attachmentRubber feeder(USD200/SET), double hook single needle system, beam(355*255mm, USD50/PCS) and so on.

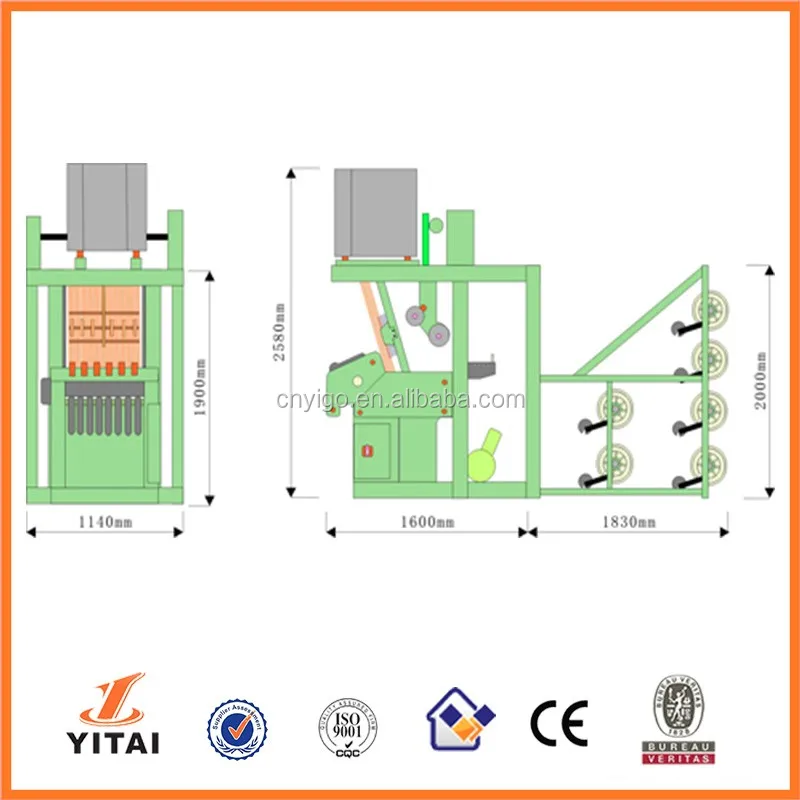

Size of package(MM)(10/25,8/30,8/35)1080*2280*2250MM;(6/45,6/55,4/65,4/80,2/110)2100*1100*2200MM
WeightN.W.900KGS; W.G.930 KGS





Jacquard Needles320384480640
Model4/656/556/456/554/652/1104/804/652/1104/80
Tapes4666424424
Reed width(mm)6555455565110806511080
Motor2HP: Double Rapid
Speed800-1000 RPM
Heald Frame8-10 PCS
Design chain circle8-40
Weft density3.5-36.7 WEFT/CM
Normal attachment14-30 yarn creel places, software ,jacquard normal attachment
Optional attachmentRubber feeder(USD200/SET), double hook single needle system, beam(355*255mm, USD50/PCS) and so on.
Size of package(MM)(10/25,8/30,8/35)1080*2280*2250MM;(6/45,6/55,4/65,4/80,2/110)2100*1100*2200MM
WeightN.W.900KGS; W.G.930 KGS

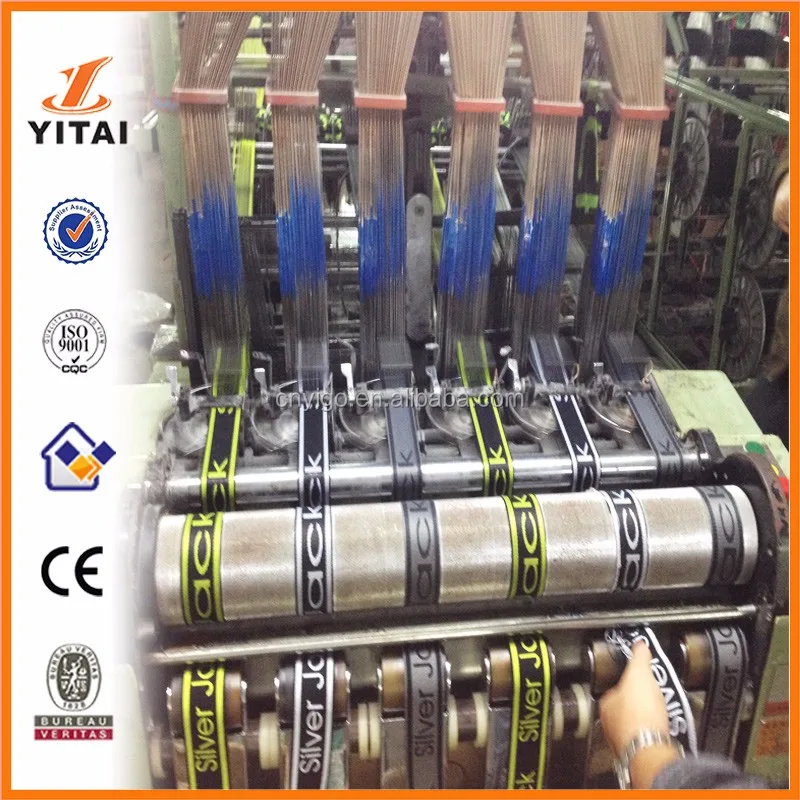

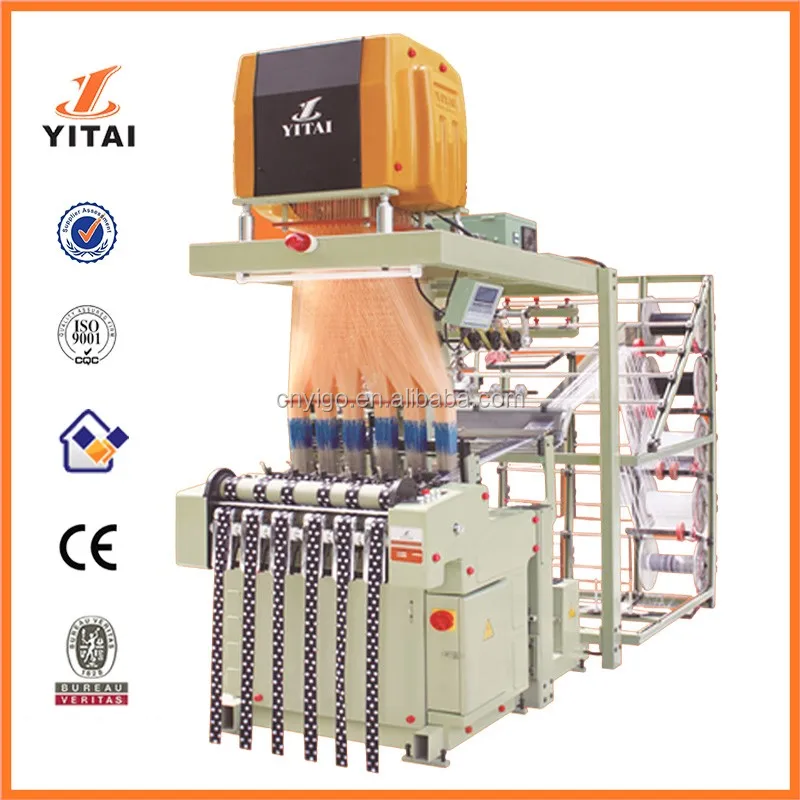

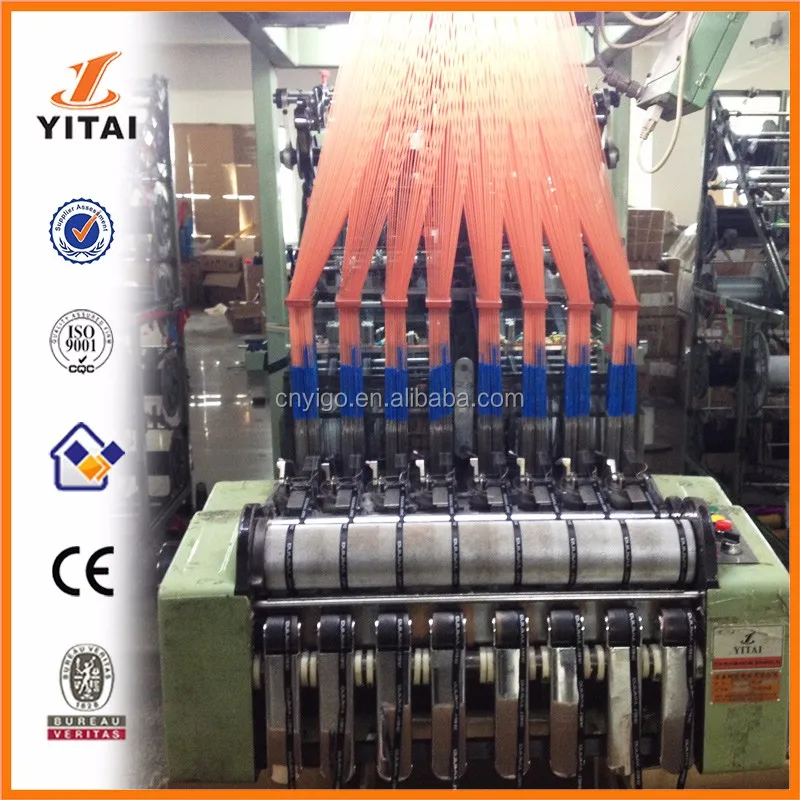

Machine detailed pictures

Packaging & Shipping
PACKING MATERIALPACKING SIZESETS/20FTSETS/40FT
WOODEN BOX2100*1200*21304 SETS8 SETS
